Open Access

RNA-seq analysis of short fiber mutants Ligon-lintless-1 (Li 1 ) and – 2 (Li 2 ) revealed important role of aquaporins in cotton (Gossypium hirsutum L.) fiber elongation

BMC Plant Biology201515:65

https://doi.org/10.1186/s12870-015-0454-0

Received: 29 October 2014

Accepted: 12 February 2015

Published: 27 February 2015

Abstract

Background

Cotton fiber length is a key determinant of fiber quality for the textile industry. Understanding the molecular basis of fiber elongation would provide a means for improvement of fiber length. Ligon lintless-1 (Li 1 ) and Ligon lintless-2 (Li 2 ) are monogenic and dominant mutations, that result in an extreme reduction in the length of lint fiber to approximately 6 mm on mature seeds. In a near-isogenic state with wild type (WT) cotton these two short fiber mutants provide an excellent model system to study mechanisms of fiber elongation.

Results

We used next generation sequencing (RNA-seq) to identify common fiber elongation related genes in developing fibers of Li 1 and Li 2 mutants growing in the field and a greenhouse. We found a large number of differentially expressed genes common to both mutants, including 531 up-regulated genes and 652 down-regulated genes. Major intrinsic proteins or aquaporins were one of the most significantly over-represented gene families among common down-regulated genes in Li 1 and Li 2 fibers. The members of three subfamilies of aquaporins, including plasma membrane intrinsic proteins, tonoplast intrinsic proteins and NOD26-like intrinsic proteins were down-regulated in short fiber mutants. The osmotic concentration and the concentrations of soluble sugars were lower in fiber cells of both short fiber mutants than in WT, whereas the concentrations of K+ and malic acid were significantly higher in mutants during rapid cell elongation.

Conclusions

We found that the aquaporins were the most down-regulated gene family in both short fiber mutants. The osmolality and concentrations of soluble sugars were less in saps of Li 1 Li 2 , whereas the concentrations of malic acid, K+ and other detected ions were significantly higher in saps of mutants than in WT. These results suggest that higher accumulation of ions in fiber cells, reduced osmotic pressure and low expression of aquaporins, may contribute to the cessation of fiber elongation in Li 1 and Li 2 short-fiber mutants. The research presented here provides new insights into osmoregulation of short fiber mutants and the role of aquaporins in cotton fiber elongation.

Background

Cotton is the major source of natural fibers used in the textile industry. Apart from its economic importance, the cotton fiber provides a unique single-celled model system to study cell elongation and cell wall biogenesis in the absence of cell division [1]. Cotton fiber development consists of four distinct but overlapping stages, including fiber initiation, elongation, secondary cell wall biosynthesis, and maturation [1]. Each cotton fiber is a single cell that initiates from the epidermis of the outer integument of the ovules at or just prior to anthesis [2]. Fiber elongation starts on the day of anthesis and continues for about 3 weeks before the cells switch to intensive secondary cell wall cellulose synthesis. Lint fibers of the economically important Gossypium hirsutum generally grow about 30–40 mm in length. During peak elongation fiber cells can increase in length at rates of 2 mm per day or more depending on environment and genotype [1-3]. The fiber cells elongate up to 3000 fold during 3 weeks which makes them the fastest growing and longest single cell known in higher plants [4]. Understanding the molecular basis of fiber elongation would provide a means for cotton breeders and researchers to improve the fiber length while maintaining yield and other cotton characteristics.

Genetic mutants are useful tools for studying the molecular mechanisms of fiber development. Our laboratory uses two short fiber mutants, Ligon lintless-1(Li 1 ) and Ligon lintless-2 (Li 2 ) as a model system to study fiber elongation [5-10]. Both Li 1 and Li 2 are monogenic and dominant mutations, resulting in an extreme reduction in the length of lint fiber to approximately 6 mm on mature seeds [11,12]. Both mutations are located in the DT subgenome of G. hirsutum: the Li 1 gene is on chromosome 22 [8,13,14], whereas the Li 2 gene is on chromosome 18 [5,10,14,15]. Cytological studies of cotton ovules did not reveal much difference between mutants and their near-isogenic WT lines during initiation and early elongation up to 3 DPA [5,13]. In a fiber developmental study Kohel and co-authors observed that the elongation pattern is similar and restricted in both, Li 1 and Li 2 fibers [16]. However, unlike the normal morphological growth of the Li 2 plants, the Li 1 mutant exhibits pleiotropy in the form of severely stunted and deformed plants in both the homozygous dominant and heterozygous state [8,11,12]. The near-isogenic lines (NILs) of Li 1 and Li 2 with the elite Upland cotton variety DP5690 previously used in our research [5,8] provide an excellent model system to study mechanism of fiber elongation.

In our previous report we used a microarray approach to identify common genes related to fiber elongation, those with altered expression as a result of the Li 1 and Li 2 mutations, growing in the field and a greenhouse [7]. We found a relatively small number; 88 genes were differentially regulated in both short fiber mutants, which may be due to limitations of microarray technology. RNA-seq offers a larger dynamic range of quantification, reduced technical variability, and higher accuracy for distinguishing and quantifying expression levels of homeologous copies than microarray [17]. RNA-seq can provide a more comprehensive and accurate transcriptome analysis of cotton fiber development by using the reference genome sequence of Gossypium raimondii Ulbr. [18].

In this study we used a RNA-seq approach for the same goal: to determine fiber elongation related genes affected in both mutants growing in the field and a greenhouse. We found a larger number of differentially regulated genes common to both mutants, and from those the major intrinsic proteins were significantly over-represented among the down regulated genes. We measured the osmolality and concentrations of major osmotic solutes in sap of fiber cells. Although the osmolality and the concentrations of soluble sugars were less in saps of both short fiber mutants than in WT the concentrations of K+ and malic acid were significantly higher in saps of mutants than in WT during rapid elongation time. The higher concentrations of malic acid and ions suggest limited uptake of water into fiber cells of mutants that can be result of down regulation of major intrinsic proteins.

Results

Sources of variability in RNA-seq data

We examined genome-wide gene expression in elongating cotton fiber cells at 8 DPA in Li 1 , Li 2 mutants and WT under different growing conditions, in the field and greenhouse. The time point 8 DPA was selected because our earlier research revealed significant transcript and metabolite changes between the Li 2 and WT NILs during this time of fiber development [5,6]. Approximately 1.06 billion 100 bp reads from 13 libraries, including 9 libraries from field grown plants (this work) and 4 libraries from greenhouse grown plants (previously reported [9]), were trimmed with Sickle [19] and mapped to transcripts from the G. raimondii genome reference sequence [18,20]. The results of mapping reads are provided in Additional file 1.

Principal component analysis (PCA) was applied to explore relationships in gene expression among the samples. According to PCA, the samples from the near-isogenic lines and from the same lines growing in the field and a greenhouse are separated, indicating effects of the mutations and growth conditions on gene expression (Figure 1A). To further investigate the proportion of variation in gene expression explained by each factor, a principal variance components analysis (PVCA) was run on the same data set. This approach first reduces data dimensionality with PCA, and then fits a mixed linear model to each principal component with variance components analysis (VCA). The largest source of variability in fiber transcriptome was the variance component L (the near-isogenic lines; weighted average proportion of 56.4%), whereas the variance component E (environmental factor) explained 13.8% of the total transcriptional variance (Figure 1B).
Figure 1

Sources of variability in RNA-seq data. (A) Principal component analysis of RNA-seq samples from developing fibers (at 8 DPA) of Li 1 , Li 2 and WT NILs. F: field grown plants; GH: greenhouse grown plants. (B) Proportion of the transcriptional variance explained by each variance component. L: near-isogenic lines, Li 1 , Li 2 and WT; E: environmental factors, greenhouse and field; BR: biological replicates; and R: residual.

Differential gene expression analysis

An ANOVA model for gene expression was specified in which the measured level of gene expression in Li 1 and Li 2 under different growth conditions was compared with gene expression in corresponding WT. The ANOVA analysis of transcript data is provided in Additional file 2. We found that 4,128 genes were significantly (FDR q-value < 0.05) up-regulated in field grown Li 1 fibers, whereas only 2,144 genes were up-regulated in field grown Li 2 fibers and 3,442 genes were up-regulated in greenhouse grown Li 2 fibers (Figure 2A). The largest amount of down-regulated genes 2,536 was detected in field grown Li 1 fibers, whereas 1,740 and 1,914 genes were down-regulated in field and greenhouse grown Li 2 fibers, consequently. Only small portions of these genes were common among up-regulated (531) and down-regulated (652) in all tested conditions by ANOVA model (Figure 2A). In the following gene set enrichment analysis we focused only on these common genes since our objective was to identify fiber elongation related genes common between short fiber mutants growing in the field and a greenhouse.
Figure 2

Overview of differentially expressed genes in developing fibers of mutants comparing with WT under different growth conditions. (A) Venn diagrams of significantly up-regulated genes (left) and down-regulated genes (right) in Li 1 /wt and Li 2 /wt grown in field and greenhouse (GH). Total number of significantly regulated genes in each comparison is indicated in parentheses. (B) Gene set enrichment analysis of common regulated genes among short fiber mutants grown in field and greenhouse. As indicated in section (A) of this figure there are 531 up-regulated and 652 down-regulated common genes. MapMan BIN structure was used for functional categorization of common regulated genes. Shown are only the significantly overrepresented subcategories; the number of asterisks indicate the level of significance (i.e. *p < 0.05, **p < 0.001). Relative gene frequencies in functional categories are presented in percents from amount of up-regulated or down-regulated genes; background represents pseudo-G. hirsutum genome generated by doubling the reference G. raimondii genome. Abbreviations: ET, electron transport; and EF, miscellaneous enzyme families.

MapMan ontology was used for gene set enrichment analysis [21]. Two main categories (electron transport and transport) were overrepresented among up-regulated genes and five main categories (transport, enzyme families, cell wall, cell and development) were overrepresented among down-regulated genes in Li 1 - Li 2 developing fibers. Figure 2B shows only sub-categories from the above mentioned main categories which are significantly (Chi-square, p < 0.05) overrepresented in the Li 1 Li 2 fiber transcriptomes. Particularly, NADH dehydrogenase, cytochrome c and alternative oxidase were significantly (p < 0.0001) overrepresented sub-categories in electron transport, whereas ABC transporters and transport of amino acids were overrepresented sub-categories Li 1 Li 2 up-regulated genes. The most significantly (p < 0.0001) overrepresented sub-categories in Li 1 Li 2 down-regulated genes were: major intrinsic proteins and transport of sulphate in transport category; and the plastocyanin –like enzyme family.

Genes categorized into transport functional category were overrepresented among up-regulated and down-regulated pools of genes; however, proportions of gene family members of transporters were different among up-regulated or down-regulated genes. Significantly up-regulated and down-regulated transporters in Li 1 Li 2 mutants growing in the field and a greenhouse are shown in Tables 1 and 2. Major intrinsic proteins, sulphate and phosphate transporters were present only among pool of down-regulated genes, whereas proportions of amino acids and ABC transporters were significantly higher among pool of up-regulated genes. The sugars transporters were not significantly more abundant among up-regulated than down-regulated genes.
Table 1

Significantly up-regulated transporters in Li 1 and Li 2 mutants regardless of growth conditions

Gene-subgenome/subcategory

Li 1 /wt F

Li 2 /wt F

Li 2 /wt GH

Description

Sugars

Gorai.007G292300_A

2.9

1.5

1.7

sugar:hydrogen symporter

Gorai.012G130400_A

2.5

2.3

1.5

mannitol transporter

Gorai.011G046300_D

1.7

1.6

1.9

inositol transporter 2

Gorai.005G139700_D

2.6

1.6

1.7

sucrose transporter 2

Amino acids

Gorai.009G126900_D

2.0

1.1

1.0

Inorganic H pyrophosphatase family

Gorai.013G148800_A

3.5

1.8

2.3

amino acid permease 7

Gorai.002G233100_D

1.0

1.3

2.1

aromatic and neutral transporter 1

Gorai.005G253300_D

1.3

1.4

1.2

amino acid permease

Gorai.013G148600_A

2.2

1.8

1.6

amino acid permease 7

Metabolite transporters at the envelope membrane

Gorai.007G313700_D

1.3

1.2

1.3

phosphate translocator 1

NDP-sugars at the ER



Gorai.008G116300_A

4.2

2.1

1.4

UDP-galactose transporter 2

Metal

Gorai.007G173100_A

2.7

2.2

2.4

zinc transporter 5 precursor

Peptides and oligopeptides

Gorai.004G290200_D

4.3

3.4

4.1

Major facilitator superfamily protein

Gorai.008G190200_D

2.4

1.3

1.7

Major facilitator superfamily protein

Unspecified cations

Gorai.010G187200_D

3.0

1.3

1.8

tonoplast dicarboxylate transporter

Gorai.012G145500_A

1.4

1.1

1.0

Magnesium transporter CorA-like family

Potassium

Gorai.009G055600_D

2.5

1.4

1.5

K+ channel tetramerisation domain

ABC transporters

Gorai.007G310800_A

2.2

2.6

1.3

multidrug resistance-associated protein 3

Gorai.007G310800_D

2.8

2.9

2.0

multidrug resistance-associated protein 3

Gorai.007G310700_D

2.4

2.9

2.3

multidrug resistance-associated protein 3

Gorai.007G310600_A

2.3

2.6

1.4

multidrug resistance-associated protein 3

Gorai.007G310600_D

3.0

2.9

2.7

multidrug resistance-associated protein 3

Gorai.001G003100_D

1.7

2.8

1.9

pleiotropic drug resistance 10

Gorai.013G154800_D

1.3

2.2

1.6

multidrug resistance-associated protein 3

Gorai.007G070500_D

2.0

1.7

1.2

multidrug resistance protein

Calcium

Gorai.007G021200_D

1.5

1.4

1.4

CAX interacting protein 1

Gorai.013G148900_D

1.8

2.3

2.0

cation exchanger 2

Miscellaneous

Gorai.009G306300_D

1.6

1.7

1.2

Auxin efflux carrier family protein

Gorai.013G014100_D

2.8

3.1

2.8

Auxin efflux carrier family protein

Gorai.005G179100_A

2.3

1.2

1.7

MATE efflux family protein

Gorai.013G170200_A

2.6

1.8

1.3

MATE efflux family protein

Gorai.009G171800_A

1.8

1.0

1.1

secretory carrier 3

Gorai.009G208500_D

2.0

1.4

1.2

Xanthine/uracil permease family protein

Gorai.009G208500_A

2.3

1.3

1.3

Xanthine/uracil permease family protein

Numbers represent the log base 2 ratio of mutants to wild-type expression; F, field grown plants; and GH, greenhouse grown plants.

Table 2

Significantly down-regulated transporters in Li 1 and Li 2 mutants regardless of growth conditions

Gene-subgenome/subcategory

Li 1 /wt F

Li 2 /wt F

Li 2 /wt GH

Description

Sugars

Gorai.009G135300_D

−1.2

−1.3

−1.6

carbohydrate transmembrane transporter

Gorai.010G030700_D

−1.5

−1.0

−1.2

sucrose transporter 4

Amino acids

Gorai.006G146500_A

−2.1

−1.4

−3.9

aromatic and neutral transporter 1

Gorai.006G146500_D

−2.0

−1.6

−2.4

aromatic and neutral transporter 1

Gorai.009G453900_A

−1.3

−1.6

−1.7

amino acid permease 7

Gorai.009G321600_A

−1.0

−1.0

−1.2

proline transporter 2

Sulphate

Gorai.002G059100_A

−1.9

−1.1

−2.5

sulfate transporter 3;4

Gorai.002G059100_D

−2.0

−1.2

−2.0

sulfate transporter 3;4

Gorai.009G240100_A

−2.8

−1.2

−1.8

STAS domain/Sulfate transporter family

Phosphate

Gorai.008G179500_A

−1.5

−1.2

−3.0

EXS (ERD1/XPR1/SYG1) family protein

Gorai.010G140300_A

−1.3

−1.3

−1.4

phosphate transporter 1;7

Metabolite transporters at the envelope membrane

Gorai.004G292400_A

−1.2

−1.3

−1.2

Nucleotide-sugar transporter family protein

Gorai.008G241700_A

−1.9

−1.1

−1.5

Nucleotide-sugar transporter family protein

Gorai.003G043000_D

−1.7

−1.7

−1.3

uncoupling protein 5

Metal

Gorai.011G049700_D

−3.4

−1.6

−1.8

zinc transporter 10 precursor

Gorai.003G073800_D

−2.0

−1.2

−1.1

Cation efflux family protein

Peptides and oligopeptides

Gorai.007G049100_D

−1.3

−1.9

−1.4

oligopeptide transporter 7

Gorai.007G049100_A

−1.3

−2.1

−1.4

oligopeptide transporter 7

Gorai.009G271300_A

−2.4

−1.5

−1.9

peptide transporter 1

Unspecified cations

Gorai.006G257200_D

−3.9

−3.4

−3.7

sodium hydrogen exchanger 2

Gorai.002G024800_D

−2.4

−2.7

−1.6

magnesium transporter 9

Potassium

Gorai.010G066400_A

−1.2

−1.2

−1.7

K+ transporter 1

ABC transporters

Gorai.009G304900_A

−1.2

−1.2

−1.3

pleiotropic drug resistance 6

Gorai.002G162300_A

−2.6

−1.9

−3.2

non-intrinsic ABC protein 12

Gorai.001G057400_D

−1.6

−1.6

−2.1

pleiotropic drug resistance 12

Gorai.003G062100_D

−1.5

−1.1

−3.6

ABC-type transporter family protein

Major intrinsic proteins

Gorai.004G001400_D

−3.7

−2.9

−5.1

plasma membrane intrinsic protein 2;4

Gorai.002G002500_A

−2.3

−1.9

−2.5

plasma membrane intrinsic protein 3

Gorai.002G002500_D

−2.0

−1.6

−2.1

plasma membrane intrinsic protein 3

Gorai.002G248400_D

−3.1

−2.6

−2.4

plasma membrane intrinsic protein 2

Gorai.002G248400_A

−1.9

−1.7

−2.1

plasma membrane intrinsic protein 2

Gorai.004G212800_A

−1.3

−1.2

−1.9

plasma membrane intrinsic protein 1;4

Gorai.004G212800_D

−1.4

−1.1

−1.8

plasma membrane intrinsic protein 1;4

Gorai.011G098100_D

−3.1

−1.9

−3.4

plasma membrane intrinsic protein 3

Gorai.011G098100_A

−2.9

−1.6

−1.7

plasma membrane intrinsic protein 3

Gorai.013G265400_D

−2.4

−1.3

−2.1

tonoplast intrinsic protein 1;3

Gorai.013G265400_A

−2.1

−1.4

−1.9

tonoplast intrinsic protein 1;3

Gorai.002G245900_A

−2.7

−2.4

−3.4

gamma tonoplast intrinsic protein

Gorai.003G136600_A

−2.9

−2.7

−3.2

tonoplast intrinsic protein 1;3

Gorai.007G078800_A

−2.3

−1.2

−2.5

NOD26-like intrinsic protein 4;2

Calcium

Gorai.013G196000_D

−1.4

−1.3

−1.4

Sodium/calcium exchanger family protein

Miscelleneous

Gorai.003G000900_D

−3.2

−2.9

−4.0

Auxin efflux carrier family protein

Gorai.003G000900_A

−4.8

−3.9

−3.9

Auxin efflux carrier family protein

Gorai.008G124800_D

−1.1

−1.0

−1.4

cyclic nucleotide gated channel 1

Gorai.007G212500_A

−1.3

−2.3

−2.2

MATE efflux family protein

Gorai.007G212500_D

−1.7

−2.8

−1.8

MATE efflux family protein

Gorai.002G230300_D

−1.4

−1.8

−1.9

MATE efflux family protein

Gorai.001G084300_D

−1.9

−2.2

−2.6

MATE efflux family protein

Gorai.003G066500_A

−4.0

−3.1

−2.7

phosphoglyceride transfer family protein

Gorai.002G017400_A

−2.1

−1.6

−3.0

Secretory carrier membrane protein

Gorai.002G017400_D

−1.2

−1.3

−1.9

Secretory carrier membrane protein

Numbers represent the log base 2 ratio of mutants to wild-type expression; F, field grown plants; and GH, greenhouse grown plants.

Major intrinsic proteins

Major intrinsic proteins or aquaporins were one of the most significantly (p < 0.0001) over-represented gene family among down-regulated genes in Li 1 Li 2 fibers. Aquaporins facilitate the efficient transport of water and other small molecules across membranes in plants and other organisms [22]. Cotton aquaporins form a large family of proteins phylogenetically divided into five subfamilies including: plasma membrane intrinsic proteins (PIP), tonoplast intrinsic proteins (TIP), NOD26-like intrinsic proteins (NIP), small basic intrinsic proteins (SIP), and the recently identified X (or unrecognized) intrinsic proteins (XIP) [23]. To assess which subfamily members of aquaporins were affected by Li 1 Li 2 mutations: first, we conducted phylogenetic analysis of G. raimondii genes annotated as aquaporins; and second, evaluated their expression level in Li 1 Li 2 developing fibers. The analyzed G. raimondii aquaporins clustered into five main clades (marked by empty squares) representing the above mentioned subfamilies (Additional file 3). The members of subfamilies PIP (7 genes), TIP (4 genes) and NIP (2 genes) were down-regulated in Li 1 Li 2 developing fibers (marked by black triangle in Additional file 3). The most highly induced aquaporins in WT fibers, for which transcript levels were dramatically reduced in Li 1 Li 2 mutants, were tested by RT-qPCR. In most cases results of RT-qPCR analysis were consistent with results of RNA-seq analysis (Figure 3). There were a number of aquaporins which showed increased transcript level only in greenhouse grown Li 2 (Additional file 4), indicating interactive response to Li 2 mutation and growth conditions. However, relative expression level of those genes was considerably less compared with WT expressed aquaporins as shown in Figure 3 (1,500 reads in greenhouse Li 2 induced vs. 500,000 reads in WT expressed).
Figure 3

RNA-seq and RT-qPCR analyses of transcript level of members of the aquaporin family in Li 1 , Li 2 and WT developing fibers at 8 DPA. Error bars indicate standard deviation from 2 biological replicates for RNA-seq data and 3 biological replicates for RT-qPCR. Abbreviations: F, field grown plants; GH, greenhouse grown plants; PIP, plasma membrane intrinsic proteins; and TIP, tonoplast intrinsic proteins.

Osmotic concentrations and solutes in saps of Li 1 and Li 2 fiber cells

We measured the osmotic concentration and calculated osmotic pressure of the sap of cotton fiber cells. The sap solution represents the average osmotic concentration of the vacuole, the cytoplasm, and the apoplast (i.e. free-space solution) of the fiber cells. In fiber cells the vacuole occupies approximately 90% of the cell volume [4]; therefore the measured osmotic concentration values largely represent the solute concentration of the vacuoles. The calculated osmotic pressure in sap of WT fibers was steadily high during rapid fiber elongation, at 3 – 16 DPA, and significantly dropped during the transition to the cell wall biosynthesis stage (Figure 4). The pattern of osmotic pressure in sap of Li 1 fibers was similar with pattern in WT; although the osmotic pressure was significantly lower (p < 0.05) at 3 – 8 DPA. In sap of Li 2 fibers the osmotic pressure was significantly lower than in WT at 3 – 5 DPA, but higher at 24 DPA.
Figure 4

Osmotic concentration (OC) and the calculated osmotic pressure of the sap of cotton fiber cells. Cotton fiber cells sap was collected only from field grown plants. Error bars represent standard deviation from 3 biological replicates.

Soluble sugars, K+, and malate are major active solutes in elongating fibers, to which are often attributed 80% of the fiber sap osmolality [4,24,25]. To assess which osmotic solutes altered in the Li 1 and Li 2 developing fibers we measured the concentrations of sugars, malic acid, and ions in fiber sap solutions (Figure 5). Concentrations of hexoses (D-glucose and D-fructose) were significantly less in sap of Li 1 and Li 2 fibers compared to WT during rapid fiber cell expansion (at 5 – 16 DPA). The level of sucrose was low during elongation at 3 – 16 DPA in sap of all near-isogenic lines; however, at 20 – 24 DPA the concentration of sucrose significantly increased in Li 1 and Li 2 , but not in WT fiber. Surprisingly, the concentrations of malic acid and K+ were significantly (p < 0.001) higher in sap of Li 1 and Li 2 fibers comparing to WT during elongation (Figure 5). The concentrations of Na+ were not significantly different in saps of Li 1 , Li 2 and WT. We also measured the concentrations of Ca+2 and phosphorus, which were significantly higher in saps of mutants compared to WT.

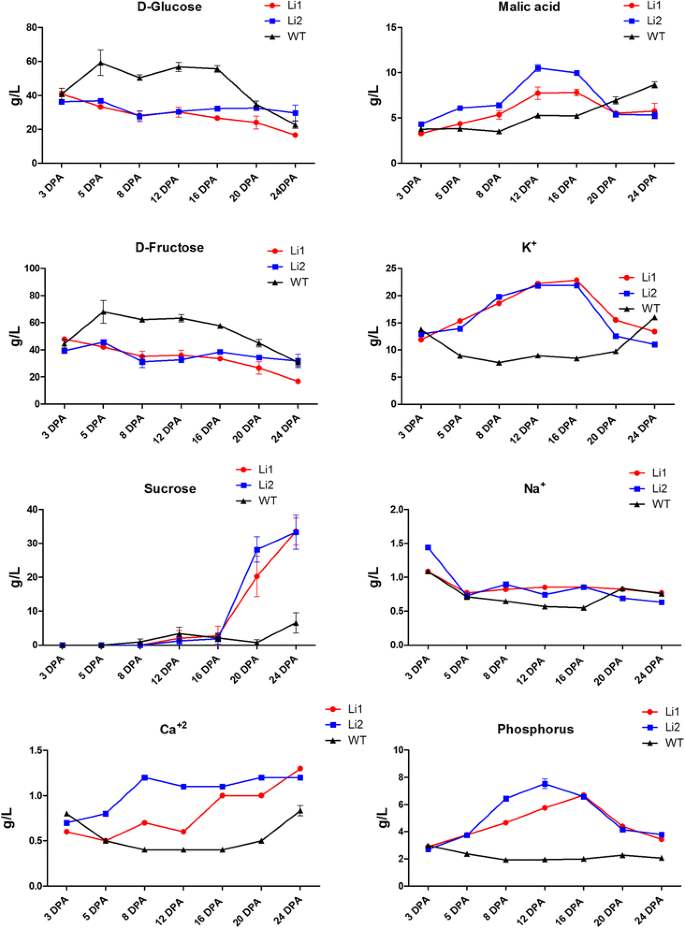

Figure 5

Concentrations of sugars, malic acid and inorganic ions in saps of developing Li 1 , Li 2 and WT fibers. Error bars represent standard deviation: for sugars and malic acid from 3 biological replicates; and for inorganic ions from 3 technical replicates.

Discussion

Experimental design for identification of fiber elongation related genes

In this study we compared the transcriptomes of developing fibers of two short fiber mutants and their WT NIL growing in the field and a greenhouse. The mutated genes of the Li 1 and the Li 2 are yet to be discovered. A defect in the Li 1 gene affected a number of traits (dwarf deformed plants and short fiber phenotype), while the defect in Li 2 gene affected only fiber length. Therefore, the Li 1 and Li 2 , most likely, are different types of genes; their alterations interrupt different parts of a complex biosynthetic process, but in both cases cause a short fiber phenotype. Both Li 1 and Li 2 mutations have an enormous effect on the fiber transcriptomes; the largest source of variability in the fiber transcriptome data was due to mutations (56.4%; Figure 1B). However, altered expression of many genes in Li 1 Li 2 transcriptomes can be result of chain-reactions to adverse effects of the causative mutation, and is not necessary directly related to fiber elongation process. Also it is known that many fiber-related genes are environmentally regulated [26]; in our experiment the environmental factor contributed 13.8% to the data variability (Figure 1B). Therefore, to reduce noise in the data we selected common regulated genes between Li 1 /wt and Li 2 /wt grown in the field and Li 2 /wt grown in a greenhouse. This approach allowed the identification of transcripts directly related to fiber elongation process regardless of far downstream effects of the mutations and environmental conditions.

Gene set enrichment analysis

We found a large number of differentially expressed genes common to both mutants (Figure 2A). To gain insight into biological processes altered by Li 1 Li 2 mutations we used MapMan ontology for gene set enrichment analysis. Consistent with our previous microarray study, mitochondrial electron transport functional category was over-represented among up-regulated genes in short fiber mutants [7]. Enrichment of the cell wall functional category was expected among down-regulated genes and described for Li 1 and Li 2 in our previous reports [5-8]. However, strong down-regulation of major intrinsic proteins in short fiber mutants was not noticed before in our microarray studies, probably due to limitations of microarray techniques. Here, we found that the major intrinsic proteins were the most down-regulated gene family in both short fiber mutants; their role in osmoregulation of Li 1 Li 2 fibers is discussed below.

Osmoregulation in short fiber mutants

The rapid expansion of fiber cells requires high turgor pressure and cell wall relaxation [4,25,27]. The force of turgor pressure is related to the osmotic potential and to the transport coefficient for water uptake [28]. The maintenance of sufficient osmoticum to compensate for dilution effects resulting from the influx of water is an important component of sustainable cell expansion [27]. In the fiber sap of short fiber mutants we detected significantly lower osmotic pressure than in WT. The reduced osmotic pressure in Li 1 Li 2 may not be sufficient to maintain rapid and sustainable cell expansion and may cause short fiber phenotype. Soluble sugars, K+ and malic acid are considered as major active solutes in rapidly expanding fiber cells [4,24,25]. We detected lower concentrations of glucose and fructose in sap of short fiber mutants than in WT that correlate with lower osmotic pressure, suggesting sugars are the main solutes to positively impact turgor in fiber cells. Sucrose was almost undetectable in mutants and WT fibers during the rapid elongation phase (3 – 16 DPA). In developing fiber cells, sucrose is degraded into hexoses by sucrose synthase in the cytoplasm and acid invertase in the vacuole [24,29,30]. We tested the expression levels of sugars transporters in mutants because their regulation may cause a reduced supply of sugars in developing fibers. However, the number of up-regulated sugars transporters in Li 1 Li 2 was higher than down regulated: 4 versus 2 genes, correspondingly (Tables 1 and 2). Therefore, the transport of sugars is unlikely altered in short fiber mutants. In our previous report we observed significant reductions in the levels of detected free sugars, sugar alcohols, sugar acids, and sugar phosphates in the Li 2 metabolome; also biological processes associated with carbohydrate biosynthesis were significant down-regulated in the Li 2 transcriptome [6]. Consequently, detection of low amount of sugars in sap of Li 1 Li 2 fibers might be the result of reduced de novo synthesis of sugars in mutants.

The driving force for the transport and accumulation of ions into the protoplast and vacuole is provided by the plasma membrane and vacuolar H+-ATPases [27,31]. We did not detect the plasma membrane and vacuolar H+-ATPases among common Li 1 Li 2 up-regulated or down-regulated pools of genes. Numbers of calcium, potassium and other metal transporters were not significantly different between pools of up-regulated and down-regulated genes in short fiber mutants; except for sulphate and phosphate transporters which were present among down-regulated genes only (Tables 1 and 2). Thus, ion transport in Li 1 Li 2 is unlikely to be affected by the mutations and proceeds normally as in wild type plants. The higher concentrations of malic acid, K+ and other inorganic ions detected in sap of Li 1 Li 2 can be explained by reduced influx of water into fiber cells of mutants (Figure 5). Since malic acid and K+ (major osmotic solutes) cannot restore the balance of water uptake into developing Li 1 Li 2 fibers, there is another factor, which might be crucial for osmoregulation of cotton fibers – the major intrinsic proteins (Figure 6).
Figure 6

A possible mechanism of termination of fiber elongation in the Li 1 and Li 2 mutants. The high osmotic pressure in fiber cell of WT and high level of expression of aquaporins facilitates influx of water that contributes to the rapid fiber elongation. The higher accumulation of ions in fiber cells of Li 1 Li 2 may be the result of limited uptake of water. The reduced influx of water (due to low concentration of sugars and low expression of aquaporins) causes the reduced fiber elongation in the Li 1 Li 2 mutants.

The major intrinsic proteins or aquaporins were the most overrepresented gene family among down-regulated genes in both short fiber mutants (Table 2). The expression level of some members of PIPs and TIPs at 8 DPA of fiber development in WT was enormous, up to 500,000 reads (Figure 3). It has been indicated in a number of studies that the osmotic water permeability (or hydraulic conductivity) is controlled by the activity of aquaporins. For instance, Javot and co-authors showed that Arabidopsis PIP2;2 is highly expressed in several root cell types, and that, by comparison to WT plants, the hydraulic conductivity of corresponding knock-out mutants (pip2;2) was reduced by 14% [32]. The hydraulic conductivity of pip1;2 mutants and pip2;1 and pip2;2 double mutants was decreased by 20% and 40% respectively, compared to that of WT [33,34]. A link between aquaporins and cell growth has also been shown in different species. Virus-induced silencing of rose PIP2;1 resulted in a reduction in size of cells and petal expansion [35]. Over-expression of a cauliflower TIP1-GFP fusion in tobacco suspension cells or of ginseng TIP in Arabidopsis leaves led to an increase in cell size [36,37]. Vacuole regeneration and cell expansion were accelerated in protoplast prepared from BY-2 cells over-expressing the NtTIP1;1 [38]. Knockdown of expression of GhPIP2 genes by RNA interference in G. hirsutum markedly inhibited fiber elongation [39]. Thus, the reduced expression of aquaporins in short fiber mutants may reduce the influx of water into fiber cells and slow down the elongation process (Figure 6).

Conclusions

Here, we used an RNA-seq approach to determine common fiber elongation related genes in developing fibers of Li 1 and Li 2 mutants growing in the field and a greenhouse. We found that the aquaporins were the most down-regulated gene family in both short fiber mutants. The osmolality and concentrations of soluble sugars were less in saps of Li 1 Li 2 , whereas the concentrations of malic acid, K+ and other detected ions were significantly higher in saps of mutants than in WT. These results suggest that higher accumulation of ions in fiber cells, reduced osmotic pressure and low expression of aquaporins, may contribute to the cessation of fiber elongation in Li 1 and Li 2 short-fiber mutants.

Methods

Plant materials

Two mutant lines Li 1 and Li 2 in a near-isogenic state with the WT upland cotton line DP5690 were developed in a backcross program at Stoneville, MS as described before [5,8]. The growing period for the greenhouse grown Li 2 plants was between October, 2009 and March, 2010; planting and growth conditions were previously described [5]. For the field grown plants, a total of 150 Li 1 , 100 Li 2 , and 100 WT plants were grown in a field at the USDA-ARS Southern Regional Research Center, New Orleans, LA in the summer of 2013. All samples of the same developmental stage were tagged and collected on the same day. Cotton bolls were harvested at 3, 5, 8, 12, 16, 20, and 24 DPA. Bolls were randomly separated into 3 replicates with 15–30 bolls per replicate.

RNA isolation and reverse transcription quantitative polymerase chain reaction (RT-qPCR)

Total RNA was isolated from detached fibers [40] using the Sigma Spectrum Plant Total RNA Kit (Sigma-Aldrich, St. Louis, MO) with the optional on column DNase1 digestion according to the manufacturer’s protocol. The concentration of each RNA sample was determined using a NanoDrop 2000 spectrophotometer (NanoDrop Technologies Inc., Wilmington, DE). The RNA quality for each sample was determined by RNA integrity number (RIN) using an Agilent Bioanalyzer 2100 and the RNA 6000 Nano Kit Chip (Agilent Technologies Inc., Santa Clara, CA) with 250 ng of total RNA per sample. RNA from each of the above mentioned time-points was used for RT-qPCR analysis. A detailed description of reverse transcription, qPCR and expression analysis was previously reported [9]. Sequences of primers used for qPCR are listed in Additional file 5.

Deep sequencing and differential gene expression

Library preparation and sequencing were performed by Data2Bio LLC (Roy J. Carver Co-Laboratory, Ames, Iowa). The libraries were sequenced using 101 cycles of chemistry and imaging, resulting in paired end (PE) sequencing reads with length of 2 × 101 bp. For the greenhouse grown Li 2 plants samples were sequenced in two biological replicates (sequencing and data were described elsewhere [9]). For the field grown Li 1 , Li 2 and WT plants RNA samples from cotton fiber at 8 DPA were sequenced in three biological replicates. The 8 DPA was chosen because it is the peak of fiber elongation phase according to our earlier studies [5,6,8]. RNA-seq expression analysis was conducted following the PolyCat pipeline [20]. Briefly, all reads were aligned to the JGI Gossypium raimondii reference genome [18], then the PolyCat software assigned each categorizable read to either the A or D subgenome based on an index of homeoSNPs. We followed two adjustments previously described [10], particularly: 1) we only counted exonic reads; 2) we used the ratio of A-assigned to D-assigned reads to proportionally divide the total number of mapped reads for each gene which ensures that unassigned reads contribute to the total expression of genes. The data normalization and ANOVA process were conducted as previously described [9]. Principal component analysis (PCA) was conducted using JMP Genomics 7 software (SAS Institute Inc., Cary, NC, USA). Transcript data for each sample were used as continuous variables. Principal variance component analysis (PVCA) reduces the dimensionality of the data set with PCA, and then fits a mixed linear model to each principal component to partition variability with variance components analysis (VCA). A summary of variance components across all principal components is constructed as a weighted average of the individual estimates, using eigenvalues as weights [41].

Osmotic concentration measurement of cotton fiber saps

Saps were collected from cotton fiber cells from the each time point mentioned above. From short fiber ovules fibers were collected by shaking ovules frozen in liquid nitrogen. Fibers from long fiber ovules were pulled off by forceps. For each replicate, about 200 mg of frozen fibers were thawed on ice. Sap was separated by centrifugation at 5,000 g for 1 min [30]. The osmotic concentration of cotton fiber sap was measured using a vapour pressure osmometer, VAPRO-5600 (WESCOR INC., South Logan, UT, USA) in three biological replicates as previously described [30]. The osmotic pressure (MPa) was calculated from the osmotic concentration using the equivalence 2.44 MPa per 1 Osmol∙kg−1 (25°C) [42].

Measurement of sugars and malic acid concentrations in cotton fiber saps

Concentrations of sucrose, D-fructose and D-glucose in cotton fiber saps were measured using enzyme assay kit K-SUFRG (Megazyme International, Ireland) according to the manufacturer’s instructions. Sap samples were diluted 50 times in water for sugar determination. Concentration of L-malic acid in cotton fiber sap was measured using enzyme assay kit K-LMALR (Megazyme International, Ireland) according to the manufacturer’s instructions. Sap samples were diluted 5 times in water for malic acid determination.

Measurement of ions in cotton fiber saps

Potassium, sodium, calcium and phosphorous contents were determined using Prodigy High Dispersion Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES, Teledyne Leeman Labs). A series of KNO3, Na2CO3, CaO and H3PO4 concentrations (diluted in 2% nitric acid) were used as standards. The nitric acid digestion of sap samples was conducted according to method reported elsewhere [43]. Particularly, 1 ml of pure grade 20% nitric acid was added to 200 μl of sap in an acid-washed plastic test tube. The sealed tube containing sap acid solution was incubated at 65°C for at least 12 hours. The digested sap solution was diluted with 2% nitric acid and analyzed with ICP-OES in three technical replicates.

Availability of supporting data

RNA-seq data from developing fibers (at 8 DPA) of field grown plants from two short-fiber mutants, Li 1 and Li 2 and their NIL G. hirsutum DP5690 are available in the NCBI SRA archive (accession # PRJNA273732).

Abbreviations

Li 1

Ligon lintless-1

Li 2

Ligon lintless-2

DPA:

Day post-anthesis

NILs:

Near-isogenic lines

WT:

Wild type

PIP:

Plasma membrane intrinsic protein

TIP:

Tonoplast intrinsic protein

Declarations

Acknowledgements

This project was financially supported by the USDA-ARS CRIS project # 6435-21000-0017D and Cotton Incorporated project # 12–210. We greatly appreciate the contributions of Christopher Florane from our group for assistance with sample collection and nucleic acid extraction and Danielle Lee Burnett from commodity utilization unit for running ICP-OES. Mention of trade names or commercial products in this article is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture that is an equal opportunity provider and employer.

Authors’ Affiliations

(1)
Cotton Fiber Bioscience Research Unit, USDA-ARS-SRRC

References

  1. Kim HJ, Triplett BA. Cotton fiber growth in planta and in vitro. Models for plant cell elongation and cell wall biogenesis. Plant Physiol. 2001;127(4):1361–6.View ArticlePubMed CentralPubMedGoogle Scholar
  2. Basra AS, Malik AC. Development of the cotton fiber. Int Rev Cytol. 1984;89:65–113.View ArticleGoogle Scholar
  3. Meinert MC, Delmer DP. Changes in biochemical composition of the cell wall of the cotton fiber during development. Plant Physiol. 1977;59(6):1088–97.View ArticlePubMed CentralPubMedGoogle Scholar
  4. Ruan YL, Llewellyn DJ, Furbank RT. The control of single-celled cotton fiber elongation by developmentally reversible gating of plasmodesmata and coordinated expression of sucrose and K+ transporters and expansin. Plant Cell. 2001;13(1):47–60.PubMed CentralPubMedGoogle Scholar
  5. Hinchliffe DJ, Turley RB, Naoumkina M, Kim HJ, Tang Y, Yeater KM, et al. A combined functional and structural genomics approach identified an EST-SSR marker with complete linkage to the Ligon lintless-2 genetic locus in cotton (Gossypium hirsutum L.). BMC Genomics. 2011;12:445.View ArticlePubMed CentralPubMedGoogle Scholar
  6. Naoumkina M, Hinchliffe D, Turley R, Bland J, Fang D. Integrated metabolomics and genomics analysis provides new insights into the fiber elongation process in ligon lintless-2 mutant cotton (Gossypium hirsutum L.). BMC Genomics. 2013;14(1):155.View ArticlePubMed CentralPubMedGoogle Scholar
  7. Gilbert MK, Kim HJ, Tang Y, Naoumkina M, Fang DD. Comparative transcriptome analysis of short fiber mutants Ligon-lintless 1 and 2 reveals common mechanisms pertinent to fiber elongation in cotton (Gossypium hirsutum L.). PLoS One. 2014;9(4):e95554.View ArticlePubMed CentralPubMedGoogle Scholar
  8. Gilbert MK, Turley RB, Kim HJ, Li P, Thyssen G, Tang Y, et al. Transcript profiling by microarray and marker analysis of the short cotton (Gossypium hirsutum L.) fiber mutant Ligon lintless-1 (Li1). BMC Genomics. 2013;14:403.View ArticlePubMed CentralPubMedGoogle Scholar
  9. Naoumkina M, Thyssen G, Fang DD, Hinchliffe DJ, Florane C, Yeater KM, et al. The Li 2 mutation results in reduced subgenome expression bias in elongating fibers of allotetraploid cotton (Gossypium hirsutum L.). PLoS One. 2014;9(3):e90830.View ArticlePubMed CentralPubMedGoogle Scholar
  10. Thyssen GN, Fang DD, Turley RB, Florane C, Li P, Naoumkina M. Next generation genetic mapping of the Ligon-lintless-2 (Li 2 ) locus in upland cotton (Gossypium hirsutum L.). Theor Appl Genet. 2014;127:2183–92.View ArticlePubMedGoogle Scholar
  11. Kohel RJ. Linkage tests in Upland cotton, Gossypium hirsutum L. II.1. Crop Sci. 1972;12(1):66–9.View ArticleGoogle Scholar
  12. Narbuth EV, Kohel RJ. Inheritance and linkage analysis of a new fiber mutant in cotton. J Heredity. 1990;81(2):131–3.Google Scholar
  13. Karaca M, Saha S, Jenkins JN, Zipf A, Kohel R, Stelly DM. Simple sequence repeat (SSR) markers linked to the Ligon lintless (Li 1 ) mutant in cotton. J Hered. 2002;93(3):221–4.View ArticlePubMedGoogle Scholar
  14. Rong J, Pierce GJ, Waghmare VN, Rogers CJ, Desai A, Chee PW, et al. Genetic mapping and comparative analysis of seven mutants related to seed fiber development in cotton. Theor Appl Genet. 2005;111(6):1137–46.View ArticlePubMedGoogle Scholar
  15. Kohel RJ, Stelly DM, Yu J. Tests of six cotton (Gossypium hirsutum L.) mutants for association with aneuploids. J Hered. 2002;93(2):130–2.View ArticlePubMedGoogle Scholar
  16. Kohel RJ, Narbuth EV, Benedict CR. Fiber development of Ligon lintless-2 mutant of cotton. Crop Sci. 1992;32(3):733–5.View ArticleGoogle Scholar
  17. Wang Z, Gerstein M, Snyder M. RNA-Seq: a revolutionary tool for transcriptomics. Nat Rev Genet. 2009;10(1):57–63.View ArticlePubMed CentralPubMedGoogle Scholar
  18. Paterson AH, Wendel JF, Gundlach H, Guo H, Jenkins J, Jin D, et al. Repeated polyploidization of Gossypium genomes and the evolution of spinnable cotton fibres. Nature. 2012;492(7429):423–7.View ArticlePubMedGoogle Scholar
  19. Joshi NA, Fass JN: Sickle: A sliding-window, adaptive, quality-based trimming tool for FastQ files (Version 1.33) [Software] In. Available at https://github.com/najoshi/sickle; 2011.
  20. Page JT, Gingle AR, Udall JA. PolyCat: a resource for genome categorization of sequencing reads from allopolyploid organisms. G3. 2013;3(3):517–25.View ArticlePubMed CentralPubMedGoogle Scholar
  21. Thimm O, Blasing O, Gibon Y, Nagel A, Meyer S, Kruger P, et al. MAPMAN: a user-driven tool to display genomics data sets onto diagrams of metabolic pathways and other biological processes. Plant J. 2004;37(6):914–39.View ArticlePubMedGoogle Scholar
  22. Chrispeels MJ, Agre P. Aquaporins: water channel proteins of plant and animal cells. Trends Biochem Sci. 1994;19(10):421–5.View ArticlePubMedGoogle Scholar
  23. Park W, Scheffler BE, Bauer PJ, Campbell BT. Identification of the family of aquaporin genes and their expression in upland cotton (Gossypium hirsutum L.). BMC Plant Biol. 2010;10:142.View ArticlePubMed CentralPubMedGoogle Scholar
  24. Ruan YL, Chourey PS, Delmer DP, Perez-Grau L. The differential expression of sucrose synthase in relation to diverse patterns of carbon partitioning in developing cotton seed. Plant Physiol. 1997;115(2):375–85.PubMed CentralPubMedGoogle Scholar
  25. Dhindsa RS, Beasley CA, Ting IP. Osmoregulation in cotton fiber: accumulation of potassium and malate during growth. Plant Physiol. 1975;56(3):394–8.View ArticlePubMed CentralPubMedGoogle Scholar
  26. Hinchliffe DJ, Meredith WR, Delhom CD, Thibodeaux DP, Fang DD. Elevated growing degree days influence transition stage timing during cotton fiber development resulting in increased fiber-bundle strength. Crop Sci. 2011;51(4):1683–92.View ArticleGoogle Scholar
  27. Smart LB, Vojdani F, Maeshima M, Wilkins TA. Genes involved in osmoregulation during turgor-driven cell expansion of developing cotton fibers are differentially regulated. Plant Physiol. 1998;116(4):1539–49.View ArticlePubMed CentralPubMedGoogle Scholar
  28. Cosgrove D. Biophysical control of plant cell growth. Annu Rev Plant Physiol. 1986;37:377–405.View ArticlePubMedGoogle Scholar
  29. Arpat AB, Waugh M, Sullivan JP, Gonzales M, Frisch D, Main D, et al. Functional genomics of cell elongation in developing cotton fibers. Plant Mol Biol. 2004;54(6):911–29.View ArticlePubMedGoogle Scholar
  30. Wang L, Li XR, Lian H, Ni DA, He YK, Chen XY, et al. Evidence that high activity of vacuolar invertase is required for cotton fiber and Arabidopsis root elongation through osmotic dependent and independent pathways, respectively. Plant Physiol. 2010;154(2):744–56.View ArticlePubMed CentralPubMedGoogle Scholar
  31. Wilkins TA. Vacuolar H(+)-ATPase 69-kilodalton catalytic subunit cDNA from developing cotton (Gossypium hirsutum) ovules. Plant Physiol. 1993;102(2):679–80.View ArticlePubMed CentralPubMedGoogle Scholar
  32. Javot H, Lauvergeat V, Santoni V, Martin-Laurent F, Guclu J, Vinh J, et al. Role of a single aquaporin isoform in root water uptake. Plant Cell. 2003;15(2):509–22.View ArticlePubMed CentralPubMedGoogle Scholar
  33. Peret B, Li G, Zhao J, Band LR, Voss U, Postaire O, et al. Auxin regulates aquaporin function to facilitate lateral root emergence. Nat Cell Biol. 2012;14(10):991–8.View ArticlePubMedGoogle Scholar
  34. Postaire O, Tournaire-Roux C, Grondin A, Boursiac Y, Morillon R, Schaffner AR, et al. A PIP1 aquaporin contributes to hydrostatic pressure-induced water transport in both the root and rosette of Arabidopsis. Plant Physiol. 2010;152(3):1418–30.View ArticlePubMed CentralPubMedGoogle Scholar
  35. Ma N, Xue J, Li Y, Liu X, Dai F, Jia W, et al. Rh-PIP2;1, a rose aquaporin gene, is involved in ethylene-regulated petal expansion. Plant Physiol. 2008;148(2):894–907.View ArticlePubMed CentralPubMedGoogle Scholar
  36. Lin W, Peng Y, Li G, Arora R, Tang Z, Su W, et al. Isolation and functional characterization of PgTIP1, a hormone-autotrophic cells-specific tonoplast aquaporin in ginseng. J Exp Bot. 2007;58(5):947–56.View ArticlePubMedGoogle Scholar
  37. Reisen D, Leborgne-Castel N, Ozalp C, Chaumont F, Marty F. Expression of a cauliflower tonoplast aquaporin tagged with GFP in tobacco suspension cells correlates with an increase in cell size. Plant Mol Biol. 2003;52(2):387–400.View ArticlePubMedGoogle Scholar
  38. Okubo-Kurihara E, Sano T, Higaki T, Kutsuna N, Hasezawa S. Acceleration of vacuolar regeneration and cell growth by overexpression of an aquaporin NtTIP1;1 in tobacco BY-2 cells. Plant Cell Physiol. 2009;50(1):151–60.View ArticlePubMedGoogle Scholar
  39. Li DD, Ruan XM, Zhang J, Wu YJ, Wang XL, Li XB. Cotton plasma membrane intrinsic protein 2s (PIP2s) selectively interact to regulate their water channel activities and are required for fibre development. New Phytol. 2013;199(3):695–707.View ArticlePubMedGoogle Scholar
  40. Taliercio EW, Boykin D. Analysis of gene expression in cotton fiber initials. BMC Plant Biol. 2007;7:22.View ArticlePubMed CentralPubMedGoogle Scholar
  41. Machado A, Wu Y, Yang Y, Llewellyn DJ, Dennis ES. The MYB transcription factor GhMYB25 regulates early fibre and trichome development. Plant J. 2009;59(1):52–62.View ArticlePubMedGoogle Scholar
  42. Kutschera U. Osmotic relations during elongation growth in hypocotyls of Helianthus annum L. Planta. 1991;184(1):61–6.View ArticlePubMedGoogle Scholar
  43. Burnett DL. Determining the relative influence of the metal pollutants in the Newport and Laguna Beach seawater on the giant kelp (Macrocystis pyrifera) populations of crystal cove state park by analysis of sieve tube sap metals, Master’s thesis. Long Beach: California Satate University; 2013.Google Scholar
  44. Tamura K, Stecher G, Peterson D, Filipski A, Kumar S. MEGA6: Molecular Evolutionary Genetics Analysis version 6.0. Mol Biol Evol. 2013;30(12):2725–9.View ArticlePubMed CentralPubMedGoogle Scholar
  45. Saitou N, Nei M. The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol Biol Evol. 1987;4(4):406–25.PubMedGoogle Scholar
  46. Felsenstein J. Confidence limits on phylogenies: an approach using the bootstrap. Evolution. 1985;39:783–91.View ArticleGoogle Scholar
  47. Zuckerkandl E, Pauling L. Evolutionary divergence and convergence in proteins. New York: Academic Press; 1965.Google Scholar

Copyright

© Naoumkina et al.; licensee BioMed Central. 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Advertisement
