Potato calcium sensor modules StCBL3-StCIPK7 and StCBL3-StCIPK24 negatively regulate plant immunity
BMC Plant Biology volume 24, Article number: 30 (2024)
Abstract
Background
Potato late blight, caused by Phytophthora infestans, is the most devastating disease on potato. Dissecting critical immune components in potato will be supportive for engineering P. infestans resistance. Upon pathogens attack, plant Ca2+ signature is generated and decoded by an array of Ca2+ sensors, among which calcineurin B-like proteins (CBLs) coupled with plant specific CBL-interacting protein kinases (CIPKs) are much less explored in plant immunity.
Results
In this study, we identified that two differential potato CBL-CIPK modules regulate plant defense responses against Phytophthora and ROS production, respectively. By deploying virus-induced gene silencing (VIGS) system-based pathogen inoculation assays, StCBL3 was shown to negatively regulate Phytophthora resistance. Consistently, StCBL3 was further found to negatively regulate PTI and ETI responses in Nicotiana benthamiana. Furthermore, StCIPK7 was identified to act together with StCBL3 to negatively regulate Phytophthora resistance. StCIPK7 physically interacts with StCBL3 and phosphorylates StCBL3 in a Ca2+-dependent manner. StCBL3 promotes StCIPK7 kinase activity. On the other hand, another StCBL3-interacting kinase StCIPK24 negatively modulating flg22-triggered accumulation of reactive oxygen species (ROS) by interacting with StRBOHB.
Conclusions
Together, these findings demonstrate that the StCBL3-StCIPK7 complex negatively modulates Phytophthora resistance and StCBL3-StCIPK24 complex negatively regulate ROS production. Our results offer new insights into the roles of potato CBL-CIPK in plant immunity and provide valuable gene resources to engineer the disease resistance potato in the future.
Background
Phytophthora infestans is the most notorious pathogen on potato and tomato, causing late blight which is the most economically important potato disease [1]. To date, efficient control against late blight mainly rely on chemical control, which exerts potential threats to environment and human’s health. Therefore, green control technologies are urgent to develop for the pathogen management, among which genetic engineering method is the representative alternative for developing the durable and broad-spectrum resistance. Dissecting the plant immune signaling pathway and exploring novel immune-related components involved in potato defense to P. infestans is essential for mining the candidate gene resources to achieve the genetic improvement strategy. The plant immune system is composed of two layers: pattern-triggered immunity (PTI) and effector-triggered immunity (ETI), which have recently been implicated in close interplay for each other [2,3,4,5]. INF1, a protein with features of PAMPs from P. infestans, elicits host cell death and PTI responses [6]. To facilitate the infection, P. infestans secretes a battery of effectors into plant cell to interfere with PTI [7, 8]. However, effectors can be recognized by the cognate plant nucleotide-binding domain leucine-rich repeat (NLR) proteins and trigger ETI, accompanied by hypersensitive response (HR) [9]. Recent advances suggest that the PTI and ETI shared a series of common downstream signaling events, such as calcium influx and reactive oxygen species (ROS) production [10,11,12].
Serving as a ubiquitous second messenger, calcium plays an essential role in plant immunity. Upon immune activation, calcium influx mediated by calcium channels from apoplast into cytoplasm activates downstream signaling [13, 14]. In general, spatial and temporal dynamics are mainly decoded by an array of Ca2+ sensors, including conserved calmodulins (CaM), plant-specific calmodulin-like proteins, calcium dependent protein kinases (CDPKs or CPKs), calcineurin B-like proteins (CBLs) coupled with CBL-interacting protein kinases [15, 16]. CBLs and CIPKs constitute a signaling module in response to a variety of extracellular cues. Although the identities and roles of the CBL-CIPK network function in abiotic stress have well been studied [17], several studies have indicated that certain CIPKs or CBL-CIPK modules function in response to pathogen infection. For instance, CIPK6 negatively regulates PTI and ETI in Arabidopsis [18]. Similarly, CIPK14 also functions as a negative regulator of plant immune responses to Pseudomonas syringae in Arabidopsis [19]. Furthermore, the role of several CBL-CIPK modules in plant immunity has been studied in detail. For example, tomato SlCBL10-SlCIPK6 module are required for multiple effectors-NLRs-induced cell death [20]. Wheat TaCBL4 and its interacting partner TaCIPK8 positively regulate Puccinia striiformis f. sp. tritici (Pst) resistance [21]. In addition, wheat TaCIPK10 interacts and phosphorylates NH2, homologous to Arabidopsis NPR3/4, to regulate Pst resistance [22]. Overall, the roles of potato CBL-CIPK module in plant immunity are still scarce. Whether and how the CBL-CIPK network play roles in the defense to P. infestans is waiting to be revealed.
Besides calcium influx, NADPH oxidases RBOH-catalyzed extracellular ROS generation has been considered to be an important output for defenses responses. Arabidopsis contains 10 members of RBOHs, among which RBOHD plays key roles during plant-pathogen interactions [23, 24]. Accumulating evidence indicate fine-tuning regulation of RBOH by phosphorylation and ubiquitination is essential for ROS production. For instances, Arabidopsis receptor-like cytoplasmic kinase BIK1 and CPK5 directly interacts and differentially phosphorylates N terminus of RBOHD to contribute to PAMPs-induced ROS production, respectively [25,26,27]. Consistently, the potato StCDPK5 phosphorylates StRBOHB to boost ROS production upon P. infestans infection [28]. However, whether and how other calcium sensors monitoring StRBOHB’s activity is still unknown.
Here, we systemically investigate the immune roles of StCBLs in potato and identified StCBL3 negatively regulate disease resistance to Phytophthora infection. Moreover, overexpression of StCBL3 suppress diverse PAMPs-triggered immune responses and Avr3a-R3a-mediated cell death. Furthermore, our comprehensive analysis for StCIPKs identified StCIPK7 plays a negative role in defense to Phytophthora infection. A series of biochemical means verified that StCIPK7 physically interacts with StCBL3. In vitro phosphorylation assay displayed that StCIPK7 phosphorylates StCBL3 in Ca2+-dependent manner and StCBL3 promotes StCIPK7 kinase activity. We further demonstrated StCBL3-StCIPK7 acts as a functional module in regulating the disease resistance to Phytophthora infection. On the other hand, StCIPK24 contributes to flg22-triggered accumulation of ROS by interacting with StRBOHB. Collectively, our data demonstrate the StCBL3-StCIPK7 module negatively regulates Phytophthora infection and StCBL3-StCIPK24 regulates the ROS production via interacting StRBOHB. Our results offer new insights into the roles of potato CBL-CIPK in plant immunity and provide valuable gene resources to engineer the disease resistance potato in the future.
Results
StCBL3 plays a negative role in defense against Phytophthora infection
To identify the CBL genes in potato, 10 CBL protein sequences from Arabidopsis were used as queries to search the potato genome. A total of 13 putative CBLs were identified in the potato genome and designated as StCBL1 to StCBL13 according to their locations on chromosomes (Table 1). A phylogenetic tree of potato and Arabidopsis CBLs was constructed (Fig. S1a). To further explore whether StCBLs participate in the disease response to Phytophthora infection, we first checked the transcriptional patterns of these 13 StCBL genes in potato after infection by P. infestans using our in-house transcriptome data (Fig. S1b) [29]. We defined the CBL genes with 2-fold increase or decrease in potato after P. infestans infection as P. infestans responsive CBL genes, which include StCBL3, StCBL6, StCBL10 and StCBL11. We further employed virus-induced gene silencing (VIGS) assays to analyze the roles of the potential StCBLs in response to P. capsici infection in Nicotiana benthamiana. Silencing NbCBL3, the close homolog of StCBL3, suppressed P. capsici infection, compared with the GFP control (Fig. 1a and b, S1c and S1d). Consistently, silencing NbCBL3 in N. benthamiana also significantly reduced the lesion size caused by P. infestans infection, compared with the GFP control (Fig. 1c and e). On the other hand, compared with the GFP expression control, ectopic expression of StCBL3 in N. benthamiana promotes P. infestans colonization (Fig. 1f and g). Therefore, these results indicate that StCBL3 plays a negative role in resistance to Phytophthora infections. Additionally, qPCR analyses showed that the transcript levels of StCBL3 were significantly induced during the potato-P. infestans interaction and reached a peak level at 12 hpi (Fig. 1h), which is consistent with our transcriptome data.
StCBL3 negatively regulate multiple PAMPs-triggered immune responses and Avr3a/R3a-mediated cell death
To further dissect the roles of StCBL3 in PTI and ETI, we examined the involvement of StCBL3 in multiple PAMPs-triggered immune responses. PAMP-induced ROS production was analyzed on StCBL3-overexpressed or NbCBL3-silenced N. benthamiana plants. The results showed that transient overexpression of StCBL3 significantly inhibited flg22-triggered ROS production, compared to the GFP control (Fig. 2a). Consistently, silencing the orthologue NbCBL3 in N. benthamiana increased flg22-induced ROS burst by nearly two-fold, compared with the control TRV-GFP plants (Fig. 2b). In addition, we observed that overexpression of StCBL3 also significantly inhibited the cell death induced by XEG1, a typical PAMP from P. sojae (Fig. S2a and S2b). However, overexpression of StCBL3 did not affect the cell death triggered by INF1, another PAMP from P. infestans (Fig. S2c and S2d). These results indicated that StCBL3 negatively regulates multiple PAMPs-triggered immune responses. To further test whether StCBL3 is also involved in ETI, we tested the effect of StCBL3 overexpression on the cell death induction by co-expression of the P. infestans effector Avr3a and its cognate NLR protein R3a in N. benthamiana. As shown in Fig. 2c and e, the Avr3a/R3a-induced cell death was dramatically suppressed by the expression of StCBL3. Taken together, the above results indicated that StCBL3 negatively regulate both PTI and ETI responses.
Stable expression of StCBL3 in N. benthamiana negatively regulates immune responses
To further determine the role of StCBL3 in regulating plant immunity, we generated transgenic N. benthamiana plants (StCBL3-OE) overexpressing a HA-tagged StCBL3 under the control of the 35 S promoter. As shown in Fig. 3a, two independent homozygous StCBL3-OE transgenic lines were severely impaired in flg22-triggered ROS burst (Fig. 3a and S3). Additionally, StCBL3-OE lines exhibit less pronounced Avr3a/R3a-induced cell death (Fig. 3b and c), accompanied with less ion leakage (Fig. 3d). Upon inoculated with P. capsici, the StCBL3-OE lines exhibited severer disease symptoms and larger lesion areas compared with the wild-type plants (Fig. 3e and f). Moreover, the P. capsici-induced PR1 gene expression was reduced in StCBL3-OE lines than in wild-type plants (Fig. 3g). Together, these results confirmed that StCBL3 negatively regulates plant immunity.
StCIPK7 negatively regulates Phytophthora resistance

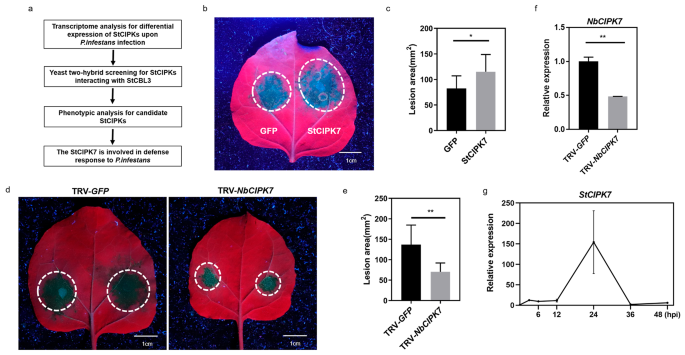

It has been documented that CBLs function together with CIPKs in mediating signaling transduction [17]. The potato genome contains 27 CIPKs [30] and a phylogenetic tree of potato and Arabidopsis CIPKs was constructed (Fig. S4a). We performed genetic and biochemical approaches to explore the potential CIPK paired with StCBL3 in plant defense to Phytophthora (Fig. 4a). First, based on the transcriptome analysis, we chose 13 differentially expressed StCIPKs as candidates, which displayed ≥ 2-fold increase or decrease in their transcripts after P. infestans infection (Fig. S4b). Then, we performed yeast-two-hybrid screening assays to test the interaction between StCBL3 and 13 StCIPKs. The result showed that 11 of the 13 CIPKs exhibit interaction with StCBL3 in yeast, including StCIPK7, 9, 11, 12, 15, 17, 19, 22, 23, 24, 27. StCIPK18 and StCIPK20 did not interact with StCBL3 in yeast (Fig. S4c). As shown in Fig. S4d and S4e, the split-luciferase complementation assays confirmed StCBL3 interacts with StCIPK1, 7, 9, 12, 15, 18, 22, 23, 24, but does not interact with StCIPK11, 17, 19, 20, 27. Finally, transient expression of 11 CIPKs in N. benthamiana followed by P. infestans inoculation assays revealed that overexpression of StCIPK7 promotes P. infestans infection (Fig. 4b and c, S4f and S4g).
To further confirm the involvement of StCIPK7 in P. infestans resistance, we employed VIGS to analyze the role of NbCIPK7, the homolog of StCIPK7 in N. benthamiana, upon P. infestans infection. As shown in Fig. 4d and f, silencing NbCIPK7 suppressed P. infestans infection compared with the GFP control in N. benthamiana. Therefore, these results indicate that, similar to StCBL3, StCIPK7 also negatively regulate plant resistance to P. infestans infection. Additionally, the expression of StCIPK7 was induced in potato upon infection by P. infestans and reached a peak level at 24 hpi (Fig. 4g).
To further evaluate the role of StCIPK7 in plant immunity, we tested the involvement of StCIPK7 in ROS production triggered by flg22. As shown in Fig. S5a and S5b, neither transient overexpression of StCIPK7 nor silencing NbCIPK7 in N. benthamiana significantly affect the flg22-indcued ROS production, compared with the control. Additionally, transient overexpression of StCIPK7 also did not have a pronounced effect on Avr3a/R3a-induced cell death in N. benthamiana (Fig. S5c and S5d). Overall, these results suggest that StCIPK7 plays a specific role in regulating the disease response to Phytophthora infection, not a role in PTI and ETI responses.
StCBL3 interacts with StCIPK7

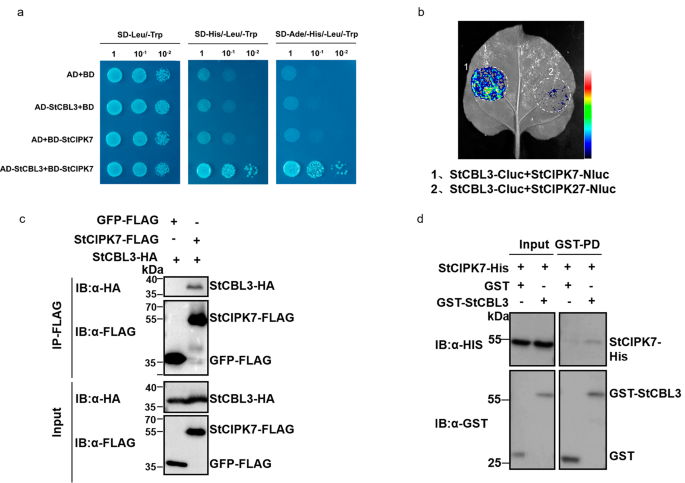

The yeast two-hybrid assay revealed StCBL3 interacts with StCIPK7 (Fig. 5a and Fig. S4c). To further confirm their interaction, a co-immunoprecipitation (coIP) assay with the co-expressed FLAG-tagged StCIPK7 and hemagglutinin (HA)-tagged StCBL3 in N. benthamiana leaves indicated that StCIPK7 associates with StCBL3 (Fig. 5b). Split-luciferase complementation assays in N. benthamiana confirmed that StCBL3 specifically interacted with StCIPK7, but not with StCIPK27 (Fig. 5c). In addition, the His-tagged StCIPK7 was pulled down by glutathione S-transferase (GST)-tagged StCBL3 but not GST itself in an in vitro pull-down assay (Fig. 5d). Together, these results demonstrated that StCBL3 interacts with StCIPK7 in vitro and in vivo.
StCBL3 cooperates with StCIPK7 to regulate Phytophthora resistance
To further investigate whether StCBL3 and StCIPK7 regulate plant immunity through the same pathway, we silenced NbCBL3 and NbCIPK7 individually or together in N. benthamiana before we inoculated these plants with P. infestans and P. capsici, respectively. As shown in Fig. 6a and d, similar reductions in lesion area were observed upon silencing NbCIPK7 and NbCBL3 individually or together, compared with the TRV-GFP control, suggesting that CIPK7 and CBL3 genetically function in the same pathway. To further confirm the genetic interaction between StCBL3 and StCIPK7, we first silenced NbCBL3, then transiently overexpressed StCIPK7 in N. benthamiana before inoculation with P. infestans. As shown in Fig. 6e and f, overexpression of StCIPK7 blocked the lesion area reduction caused by NbCBL3 silencing, indicating that StCIPK7 overaccumulation could complement the defects caused by partial loss of StCBL3. We further performed in vitro kinase assays to test the potential reciprocal regulation of StCBL3 and StCIPK7. StCIPK7 exhibited autophosphorylation activity and phosphorylated StCBL3 in vitro (Fig. 6g). Notably, the kinase activity of StCIPK7 was enhanced by adding the StCBL3 protein, and the phosphorylation of StCBL3 by StCIPK7 was blocked in the presence of Ca2+ chelator EGTA (Fig. 6g), indicating that, upon binding Ca2+, StCBL3 could further stimulate StCIPK7 activity to trigger downstream signaling.
StCIPK24 associates with StRBOHB and negatively regulate flg22-induced ROS production
The above results indicated that StCIPK7 negatively regulates the resistance to P. infestans. Nevertheless, it did not play a role in the PTI and ETI as StCBL3 did. Multiple lines of evidence have showed that the apoplastic ROS accumulation is mainly mediated by RBOHs protein regulated by diverse kinases [24]. Additionally, our aforementioned results have shown that StCBL3 negatively regulate ROS production. Therefore, we speculate that StCBL3 may act together with another StCIPK to modulate ROS production. To identify the potential StCIPK involving in the regulation ROS production, we first test the association between StCIPKs and StRBOHB. Interestingly, we found that StCBL3-interacting StCIPK24, not other StCIPKs, exhibits strong association with StRBOHB in the split-luciferase complementation assays (Fig. 7a and S6). The coIP assay in N. benthamiana further confirmed that StCIPK24 associates with StRBOHB (Fig. 7b). Moreover, transient overexpression of StCIPK24 inhibited flg22-induced ROS production compared with the GFP control and StCIPK11 (Fig. 7c). Together, the results suggest that that StCBL3-StCIPK24 negatively regulate ROS production by interacting with StRBOHB protein.
Discussion
P. infestans is an oomycete pathogen that naturally infects the crop plants potato and tomato, and has been wildly used in the interaction with the model plant N. benthamiana in the laboratory [31,32,33]. It has been shown that combinations of CBLs and CIPKs function as a signaling node in response to environmental stimuli [34,35,36,37,38]. However, the biological roles of CBL-CIPK have not been explored in potato-P. infestans system. In this study, via the transcriptome analysis of the P. infestans-infected potato plants combined with fast-forward genetic VIGS screen, we systemically screen the potato CBLs involved in plant immunity and identified StCBL3 as a novel negative regulator playing a vital role in regulating multiple layers of plant defense response to Phytophthora infection. StCBL3 negatively regulates multiple PAMPs-induced responses, such as flg22-induced ROS burst and XEG1-induced cell death (Fig. 2a and b, S2a and S2b). Interestingly, our results showed that overexpression of StCBL3 did not affect the cell death triggered by INF1, but inhibited flg22-incued ROS burst. This observation indicate that the underlying mechanism of INF1-triggered immune responses are partially different with that induced by flg22. To support this hypothesis, it has been reported that MAPK-WRKY pathway is involved in INF1-indued ROS burst, but not in the flg22-ROS burst [39]. Additionally, systemic investigation of the roles of soybean malectin/malectin-like domain-containing receptor-like kinases (MRLKs) in the plant immunity revealed that GmMRLKs differentially modulate PTI and ETI. For example, GmMRLK20 and GmMRLK25 specifically regulate INF1-induced cell death, but not flg22-induced ROS production [40]. However, the exact mechanism for the same component(s) differently responding to diverse PAMPs is still obscure. It will be interesting to investigate the functional specificity of StCBL3 involved in flg22- but not INF1-mediated immune singling in the future. StCBL3 also plays a negative role in regulating Avr3a/R3a-mediated cell death (Fig. 2c and d). Therefore, we propose that StCBL3 act in a convergent regulatory node in both PTI and ETI, which further potentiates the crosstalk between PTI and ETI.
The transcriptome analysis and our RT-qPCR data on the StCBL3 and StCIPK7 verify that the expression of StCBL3 and StCIPK7 are induced upon P. infestans infection. Previous studies have shown that the up-regulation of host genes during infection may indicate the exploitation of cellular resources and/or the activation of defense responses [41]. However, our multi-dimensional phenotypic analysis demonstrate that StCBL3-StCIPK7 acts as a negative module in plant immunity. Several studies have shown that CBL-CIPK appears to be positive components in plant immunity. For instance, tomato SlCBL10-SlCIPK6 module are positive regulator in multiple effectors-NLRs-induced cell death [20]. Wheat TaCBL4-TaCIPK8 positively regulate Pstresistance [21]. The negative role of StCBL3-StCIPK7 in plant immunity indicates that the StCBL3-StCIPK7 module may evolved for benefit of P. infestans infection. It is possible that StCBL3 is hijacked by the unknown effector secreted by P. infestans to promote the infection. This hypothesis is still needed to explore more clues.
Our studies reveal a functional role for CBL-CIPK module in the regulation to disease resistance to P. infestans. Salicylic acid (SA), a key signaling molecule of plant resistance against biotrophs, induces the expression of PR genes and results in systemic acquired resistance (SAR). Transcript level of PR1, marker gene of the SA signaling pathway was reduced in StCBL3 transgenic plants (Fig. 3g). StCBL3-StCIPK7 module probably work in plant immunity by governing the defense genes expression. In agreement with our hypothesis, several studies have indicated that different Ca2+ sensors modulate the elevation in SA that occurs late in immune responses [42]. In Arabidopsis, SA accumulation and PR gene expression are regulated by CPK1 [43]; The CAM-binding transcription activator AtCAMTA3 (also known as AtSR1) regulates SA-mediated plant immunity [44]. Wheat TaCIPK10 interacts and phosphorylates NH2, homologous to Arabidopsis NPR3/4 and master regulator in SA signaling pathway, to regulate Pst resistance [22]. Following treatment of rice cells with the fungal MAMP Trichoderma viride/ethylene-inducing xylanase (TvX/EIX), OsCIPK14/15 functions to promote PR gene expression, phytoalexin biosynthesis, and cell death, probably by combination with the Ca2+ sensor OsCBL4 [45]. Thus, we infer that SA-mediated plant immunity in potato is negatively modulated by an activated StCBL3-StCIPK7 complex. Further investigation of this important signaling node will shed light on the immunity activation following P. infestans infection.
Unlike StCBL3, StCIPK7 plays a specific role in regulating Phytophthora resistance, but not in other immune responses, such as PAMP-induced ROS production and cell death, and Avr3a/R3a-induced cell death. StCIPK7 might interact and phosphorylates the unknown immune-related transcriptional factors. It will be interesting to dissect the transcriptional reprogramming regulate by StCIPK7 in the future. Although we performed the systemic screening by transient expression CIPKs on N. benthamiana. It can not rule out the possibility that some StCIPKs, which might be overlooked in this study as result of functional redundancy, play roles in PTI and ETI. It will be interesting to further explore the roles of other StCIPKs in plant immunity.
CBLs bind to CIPKs to activate CIPKs that in turn phosphorylate CBLs to enhance the functionality of CBLs. Consistently, our biochemical characterization for StCBL3 and StCIPK7 indicated that StCIPK7 is an active kinase, whose activity is positively regulated by StCBL3 and Ca2+. Several studies have shown that the C terminal region of CBLs can be directly phosphorylated by CIPKs at some conserved serine/threonine residues [46,47,48,49]. This phosphorylation is thought to be functionally important for the specificity and activity of CBL-CIPK complexes to regulate their downstream targets.
The negative role of StCBL-StCIPK module makes it as susceptible (S) gene module. The usage of S gene has been emerged as an important mean to engineer the crop with broad and durable resistance to different pathogens, as the genome editing technology has become powerful tool because of its high efficiency, relatively low cost, and ease of use [50]. For example, introducing a novel allele of wheat S gene MLO into elite wheat varieties by precision genome editing enable confer durable resistance to powdery mildew [51]. Additionally, CRISPR/Cas9-mediated gene editing in wheat kinase gene TaPsIPK1 (another S gene) confers robust rust resistance without growth and yield penalty [52]. Our work highlights a novel CBL-CIPK module regulating potato immune response and provide a valuable gene resource to engineer potato resistance to Phytophthora pathogens. Therefore, it will be worthwhile to precise editing the StCBL-StCIPK module in potato to fulfil the green prevention and control in the future.
Besides StCBL3-StCIPK7 module negatively regulates the disease response to Phytophthora pathogens, our results showed that ROS generation is regulated by StCIPK24 which interacts and probably phosphorylates StRBOHB protein. Furthermore, our data showed that StCBL3 also interacts with StCIPK24 in yeast. Therefore, we speculate that StCBL3-StCIPK24-StRBOHB cascade mediates the ROS burst. It has been documented that the large membership of the CBL and CIPK gene families in flowering plants constitute a highly convoluted and sophisticated signaling network [17]. Each CBL interacts with a subset of CIPKs and each CIPK interacts with one or more CBLs [53]. Such specificity and overlap in CBL-CIPK interactions result in their signaling specificity and functional synergism. However, the precise mechanism of StCIPK24 regulating StRBOHB protein and ROS production remains to be investigated in the future. In agree with our result, the wheat TaCIPK5 interacts with TaRBOHi to positively regulate ROS production [21]. In tomato, ROS production is regulated by CBL10/CIPK6 [20]. Taken together, our study supports a role for CBL-CIPK in contributing to ROS production, adding another level to fine-tune ROS level in response to pathogen attacks.
Conclusions
Based on our results, we propose a model that pathogen-secreted effector may hijack StCBL3, which interacts with StCIPK7, thereby enhancing its kinase activity. StCIPK7 phosphorylates the unknown substrate, possible transactional factor, depressing the defense genes expression contributing to the resistance response. On the other hand, StCBL3 couples with StCIPK24 to regulate PAMP-induced ROS burst, probably by phosphorylating StRBOHB protein and negatively regulate its activity. Overall, the data that we present serve as a basis towards advancing our understanding of the role of the CBL-CIPK complex during oomycete-pathogen infection.
Materials and methods
Plant materials, growth condition, Phytophthora culture and infection assays
N. benthamiana plants were grown and maintained in a growth chamber at 25 °C under 16 h light/8 h dark photoperiod with a 60% relative humidity.
The P. infestans strain MZ (isolated from Heilongjiang province, China) was cultured on Rye A medium (1 L distilled water containing 60 g rye extract, 20 g sucrose and 15 g agar) at 18 °C in the dark for 10–12 days. P. capsici isolate LT263 used was routinely cultured at 25 °C on 10% vegetable (V8) juice medium in the dark.
Phytophthora infection assays
For P. infestans inoculations, the sporangia suspension solution was made in 50 mL centrifuge tube by mixing 5 mL sterile pre-cooled water with the mycelium and quantified using a hemocytometer, and the concentration was adjusted to 350 sporangial/10 µL with pre-cooled water. The fully expanded N. benthamiana leaves were inoculated with 10 µL droplets of a freshly prepared sporangia suspension and then were placed under controlled environmental conditions (18 °C darkness for 1 day, then 18 °C 16 h of light and 8 h of darkness for 6 days) before phenotypes were scored.
For P. capsici inoculations, the mycelial plugs were incubated in liquid V8 medium for 3 days, washed three times with sterilized water, and incubated in water until sporangia formed. To release the zoospores, the cultures were incubated at 4 °C for 30 min, followed by incubation at 25 °C for 1 h. The zoospore concentration was determined using a haemocytometer. Detached N. benthamiana leaves were inoculated with zoospores at the number of 350. Inoculated leaves were photographed under UV light 36 h post inoculation, and the lesion areas were measured using ImageJ [54].
Plasmid construction and generation of transgenic plants
Constructs for transient expression in N. benthamiana were generated by amplifying corresponding sequences and inserting into the pCAMBIA-1300-35 S vectors with different tags, including 3xFLAG, HA, NLUC and CLUC. The HA tag was incorporated into NLUC vector. All the constructs with a single insertion were generated by ClonExpress II one-step cloning kit (Vazyme Biotech, Nanjing, China) and verified by Sanger sequencing.
Agrobacterium-mediated transformation of N. benthamiana was carried out to obtain stable transgenic lines. Multiple transgenic lines for StCBL3 overexpression were analyzed by immunoblotting for protein expression. T3 generation of N. benthamiana were selected to obtain homozygous seeds for further studies.
The primers used to generate these constructs are listed in Supplemental Table 1.
Identification and sequence analysis of CBL gene family in potato
The TAIR v10 (http://www.arabidopsis.org/) and DM v6.1 (http://spuddb.uga.edu/) databases were used to collect amino acid sequences of CBLs in Arabidopsis and potato (Solanum tuberosum L.). To identify all StCBLs, the 10 Arabidopsis CBLs protein sequences were applied as queries by BLAST (http://spuddb.uga.edu/blast.shtml), with E-value < e− 5. Then the typical CBL domains EF-hand domains (PF13499 or PF13833) were queried via an HMM search. Each StCBL protein was also examined by SMART (http://smart.embl-heidelberg.de/). All protein sequences identified by these methods were complied, eliminated the redundant sequences. The candidate StCBLs were analyzed the MW and pI in ExPASy (https://web.expasy.or-g/prot-param/).
Phylogenetic trees were generated based on the alignment results using the maximum likelihood method and 1,000 bootstrap trials with the MEGA 7.0 software. For the heatmap, normalized gene expression values FPKM (fragments per kilobase of exon per million fragments mapped) were first transformed using log2 (FPKM + 1) and then plotted by using pheatmap package in R.
Virus-induced gene silencing (VIGS) assay
Plasmids containing binary TRV vectors pTRV-RNA1 and pTRV-RNA2 derivatives were introduced into Agrobacterium tumefaciens strain GV3101 by electroporation. Bacterial cultures were prepared as described previously [55]. Cells were pelleted by 4200 rpm centrifugation, re-suspended in a solution containing 10 mM MgCl2, 10 mM MES and 200 µM acetosyringone, adjusted to OD600 = 0.3 and incubated at 25 °C for at least 3 h. Bacterial cultures containing pTRV-RNA1 and pTRV-RNA2 derivatives were mixed at a 1:1 ratio and inoculated into the true leaves of two-week-old soil-grown plants using a needleless syringe.
RNA isolation, reverse transcription and RT-qPCR analysis
Total RNA was extracted by Trizol reagent (Zomanbio) and quantified with a spectrophotometer (NanoDrop2000, Thermo Fisher Scientific). 1 µg of total RNAs were reverse-transcribed to synthesize the first-strand cDNA with Reverse Transcription Kit (TaKaRa). RT-qPCR was carried out using 2×RealStar SYBR qPCR Mix (GeneStar) on ABI QuantStudio 6 Flex Real-time PCR System (Applied Thermo Fisher) with gene-specific primers (Supplementary Table 1) following a manufactural protocol. The relative levels of gene expression were calculated using the 2(−△△Ct) method with StActin or NbActin used as an internal reference gene.
Cell death examination and electrolyte leakage assay
To analyze the effect of StCBL3 and StCIPK7 on multiple PAMPs- and Avr3a/R3a-induced cell death, Agrobacterium which carried StCBL3 or StCIPK7 was first infiltrated into N. benthamiana leaves. Agrobacterium carried the pCAMBIA1300-GFP-HA empty vector as a control. The same areas were infiltrated with Agrobacterium with XEG1, INF1 or Avr3a/R3a 24 h later. For the cell death analysis in stable StCBL3 transgenic plants, the Agrobacterium carrying Avr3a/R3a was directly infiltrated into the leaves. The cell death phenotype was visualized and photographed under UV light 2–4 days later.
To examine the cell death by electrolyte leakage assay, leaf disks (1 cm diameter) were taken and floated with 5mL distilled water, incubated at room temperature for 3 h. The ion leakage was measured with conductivity meter (METTLER TOLEDO, Switzerland) as “value A”. Then the samples were boiled for 30 min, cooled to room temperature, the conductivity was measured again to get “value B”. For each sample ion leakage was exhibited as (value A / value B) *100%.
Split-luciferase complementation assay in N. benthamiana
The split-luciferase complementation assay was based on previous report [56]. Cluc- and Nluc-HA tagged vectors were transformed in Agrobaterium, and then transiently co-expressed in N. benthamiana for 36 h. The infiltrated leaves were sprayed with 1 mM luciferin buffer for 5 min and visualized with a Tanon-5200 Multi Chemiluminescent Imaging System (Tanon Science & Technology Co., Ltd). The luminescence intensity was measured using microplate luminometer Tecan F200.
Yeast two-hybrid assays
Yeast two-hybrid assays were performed with the Matchmaker Gold yeast two-hybrid system. StCIPKs and StCBLs were cloned into pGBKT7 and pGADT7 vectors, respectively. Then pGBKT7-StCIPKs and pGADT7-StCBLs were co-transformed into Golden yeast strain using the lithium acetate method. Transformants were first selected on double synthetic dropout medium lacking tryptophan and leucine (TaKaRa), then selected on quadruple dropout medium lacking tryptophan, leucine, histidine and adenine (TaKaRa) to detect protein interactions. pGBKT7 and pGADT7 empty vector were used as the negative control.
Co-immunoprecipitation (Co-IP) assay
The HA- and FLAG-tagged constructs were transiently expressed in N. benthamiana leaves by agroinfiltration for 48 h. The infiltrated leaves were harvested and total protein was extracted with lysis buffer (150 mM NaCl, 1 mM EDTA, 25 mM Tris-HCl pH7.5, 10% glycerol, 2% PVPP, 10 mM DTT, 1×protease inhibitor, 0.5% Triton). After vortexed vigorously for 30 s, the sample was placed on ice for 10 min and then centrifuged at 13,000 g, 4 °C for 15 min, and the supernatant was incubated with agarose-conjugated anti-FLAG beads (Sigma) for 2 h with gentle shaking, The beads were collected and washed four times with washing buffer (150mM NaCl, 1mM EDTA, 25mM Tris-HCl pH7.5, 10% glycerol, 5mM DTT). The beads were boiled with SDS-PAGE loading buffer at 94 °C for 10 min to elute the proteins. Immunoprecipitated and input proteins were analyzed by immunoblots with anti-HA and anti-FLAG indicated antibodies, respectively.
In Vitro pull-down and phosphorylation assays
The His- and GST-fused recombinant proteins were expressed in E. coli strain BL21 (DE3) and purified using Ni-NTA agarose (LABLEAD), glutathione agarose (LABLEAD), respectively, according to each manufacturer’s instructions. Approximately 10 µg of GST or GST-fused proteins was incubated with 5 µL of prewashed glutathione agarose beads in 1 mL of pull-down buffer (20mM Tris-HCl pH7.5, 150 mM NaCl, 0.1 mM EDTA, and 0.5% Triton-X100) for 30 min at 4 °C with gentle shaking. The beads were harvested by centrifugation at 1000 g for 1 min and inoculated with 10 µg of His-fused proteins in 1 mL of pull-down buffer for 1 h at 4 °C with gentle shaking. Finally, the beads were harvested and washed three times with 1mL of washing buffer (20 mM Tris-HCl pH 7.5, 300 mM NaCl, 0.1 mM EDTA, and 0.1% Triton X-100). The pulled-down proteins were released from beads by boiling in SDS-PAGE loading buffer and analyzed by immunoblotting with anti-HIS and anti-GST antibodies (TransGen), respectively.
The in vitro phosphorylation reactions were performed at 25 °C for 2 h in kinase buffer (12.5 mM Tris-HCl pH 7.5, 5 mM MgCl2, 0.5 mM CaCl2, and 0.5 mM DTT) containing 10 µg of substrate proteins, 1 µg of kinases, and 0.1 mM ATP with or without 1 µCi of [32P]-γ-ATP. Negative control reactions with the addition of 50mM EGTA were included to confirm the specificity of StCIPK7-mediated phosphorylation. The reactions were stopped by adding SDS loading buffer, and the phosphorylation of recombinant proteins was analyzed by autoradiography (Typhoon 9410 imager) after protein separation by SDS-PAGE.
Reactive oxygen species burst assay
The indicated constructs were transiently expressed in N. benthamiana leaves by agroinfiltration for 48 h. The leaf disks were collected and incubated overnight with 200 µL ultra-pure distilled water in a 96-well white plate to eliminate the wounding effect. Water was replaced by 100 µL of a reaction solution containing 100 µg/mL luminol (Sigma) and 1 mg/mL horseradish peroxidase (Sigma) supplemented with 1µM flg22 (Sangon). Luminescence was measured with a microplate luminometer (TECAN, Männedorf, Switzerland) for a period of 40 min. ROS production was indicated as means of relative light units (RLU).
Data availability
The datasets used and/or analyzed during the current study, are available from the corresponding author on reasonable request.
Abbreviations
- CBLs:
-
Calcineurin B-Like proteins
- CIPKs:
-
CBL-interacting protein kinases
- ROS:
-
Reactive oxygen species
- VIGS:
-
Virus-induced gene silencing
- PTI:
-
Pattern-triggered immunity
- ETI:
-
Effector-triggered immunity
- NLR:
-
Nucleotide-binding domain leucine-rich repeat
- HR:
-
Hypersensitive response
- CDPKs/CPKs:
-
Calcium dependent protein kinases
- Pst :
-
Puccinia striiformis f.sp. tritici
- RLU:
-
Relative light units
References
Paluchowska P, Śliwka J, Yin Z. Late blight resistance genes in potato breeding. Planta. 2022;255(6):127.
Ngou BPM, Ahn HK, Ding P, et al. Mutual potentiation of plant immunity by cell-surface and intracellular receptors. Nature. 2021;592(7852):110–15.
Pruitt RN, Locci F, Wanke F, et al. The EDS1-PAD4-ADR1 node mediates Arabidopsis pattern-triggered immunity. Nature. 2021;598(7881):495–99.
Tian H, Wu Z, Chen S, et al. Activation of TIR signalling boosts pattern-triggered immunity. Nature. 2021;598(7881):500–03.
Yuan M, Ngou BPM, Ding P, et al. PTI-ETI crosstalk: an integrative view of plant immunity. Curr Opin Plant Biol. 2021;62:102030.
Chaparro-Garcia A, Wilkinson RC, Gimenez-Ibanez S, et al. The receptor-like kinase SERK3/BAK1 is required for basal resistance against the late blight pathogen phytophthora infestans in Nicotiana Benthamiana. PLoS ONE. 2011;6(1):e16608.
He Q, McLellan H, Boevink PC, et al. All roads lead to susceptibility: the many modes of Action of Fungal and Oomycete Intracellular effectors. Plant Commun. 2020;1(4):100050.
Wang Y, Pruitt RN, Nürnberger T, et al. Evasion of plant immunity by microbial pathogens. Nat Rev Microbiol. 2022;20(8):449–64.
Lolle S, Stevens D, Coaker G. Plant NLR-triggered immunity: from receptor activation to downstream signaling. Curr Opin Immunol. 2020;62:99–105.
Peng Y, van Wersch R, Zhang Y. Convergent and divergent signaling in PAMP-Triggered immunity and effector-triggered immunity. Mol Plant Microbe Interact. 2018;31(4):403–09.
Tsuda K, Katagiri F. Comparing signaling mechanisms engaged in pattern-triggered and effector-triggered immunity. Curr Opin Plant Biol. 2010;13(4):459–65.
Yuan M, Jiang Z, Bi G, et al. Pattern-recognition receptors are required for NLR-mediated plant immunity. Nature. 2021;592(7852):105–09.
Köster P, DeFalco TA, Zipfel C. Ca(2+) signals in plant immunity. Embo j. 2022;41(12):e110741.
Xu G, Moeder W, Yoshioka K, et al. A tale of many families: calcium channels in plant immunity. Plant Cell. 2022;34(5):1551–67.
Luan S, Wang C. Calcium Signaling mechanisms across kingdoms. Annu Rev Cell Dev Biol. 2021;37:311–40.
Tian W, Wang C, Gao Q, et al. Calcium spikes, waves and oscillations in plant development and biotic interactions. Nat Plants. 2020;6(7):750–59.
Tang RJ, Wang C, Li K, et al. The CBL-CIPK Calcium Signaling Network: Unified Paradigm from 20 years of discoveries. Trends Plant Sci. 2020;25(6):604–17.
Sardar A, Nandi AK, Chattopadhyay D. CBL-interacting protein kinase 6 negatively regulates immune response to Pseudomonas syringae in Arabidopsis. J Exp Bot. 2017;68(13):3573–84.
Ma Y, Chen Q, He J, et al. The kinase CIPK14 functions as a negative regulator of plant immune responses to Pseudomonas syringae in Arabidopsis. Plant Sci. 2021;312:111017.
de la Torre F, Gutiérrez-Beltrán E, Pareja-Jaime Y, et al. The tomato calcium sensor Cbl10 and its interacting protein kinase Cipk6 define a signaling pathway in plant immunity. Plant Cell. 2013;25(7):2748–64.
Liu P, Duan Y, Liu C, et al. The calcium sensor TaCBL4 and its interacting protein TaCIPK5 are required for wheat resistance to stripe rust fungus. J Exp Bot. 2018;69(18):4443–57.
Liu P, Guo J, Zhang R, et al. TaCIPK10 interacts with and phosphorylates TaNH2 to activate wheat defense responses to stripe rust. Plant Biotechnol J. 2019;17(5):956–68.
Qi J, Wang J, Gong Z, et al. Apoplastic ROS signaling in plant immunity. Curr Opin Plant Biol. 2017;38:92–100.
Wu B, Qi F, Liang Y. Fuels for ROS signaling in plant immunity. Trends Plant Sci. 2023.
Kadota Y, Sklenar J, Derbyshire P, et al. Direct regulation of the NADPH oxidase RBOHD by the PRR-associated kinase BIK1 during plant immunity. Mol Cell. 2014;54(1):43–55.
Li L, Li M, Yu L, et al. The FLS2-associated kinase BIK1 directly phosphorylates the NADPH oxidase RbohD to control plant immunity. Cell Host Microbe. 2014;15(3):329–38.
Dubiella U, Seybold H, Durian G, et al. Calcium-dependent protein kinase/NADPH oxidase activation circuit is required for rapid defense signal propagation. Proc Natl Acad Sci U S A. 2013;110(21):8744–9.
Kobayashi M, Ohura I, Kawakita K, et al. Calcium-dependent protein kinases regulate the production of reactive oxygen species by potato NADPH oxidase. Plant Cell. 2007;19(3):1065–80.
Lu J, Liu T, Zhang X, et al. Comparison of the distinct, host-specific response of three Solanaceae hosts Induced by Phytophthora infestans. Int J Mol Sci. 2021;22(20):11000.
Ma R, Liu W, Li S, et al. Genome-wide identification, characterization and expression analysis of the CIPK Gene Family in Potato (Solanum tuberosum L) and the role of StCIPK10 in response to Drought and osmotic stress. Int J Mol Sci. 2021;22(24):13535.
Haas BJ, Kamoun S, Zody MC, et al. Genome sequence and analysis of the Irish potato famine pathogen Phytophthora infestans. Nature. 2009;461(7262):393–8.
King SR, McLellan H, Boevink PC, et al. Phytophthora infestans RXLR effector PexRD2 interacts with host MAPKKK ε to suppress plant immune signaling. Plant Cell. 2014;26(3):1345–59.
Whisson SC, Boevink PC, Wang S, et al. The cell biology of late blight Disease. Curr Opin Microbiol. 2016;34:127–35.
Ali A, Petrov V, Yun DJ, et al. Revisiting plant salt tolerance: novel components of the SOS pathway. Trends Plant Sci. 2023;28(9):1060–69.
Gratz R, Manishankar P, Ivanov R, et al. CIPK11-Dependent phosphorylation modulates FIT activity to promote Arabidopsis Iron Acquisition in response to Calcium Signaling. Dev Cell. 2019;48(5):726–40e10.
Thoday-Kennedy EL, Jacobs AK, Roy SJ. The role of the CBL–CIPK calcium signaling network in regulating ion transport in response to abiotic stress. Plant Growth Regul. 2015;76:3–12.
Tang RJ, Zhao FG, Garcia VJ, et al. Tonoplast CBL-CIPK calcium signaling network regulates magnesium homeostasis in Arabidopsis. Proc Natl Acad Sci U S A. 2015;112(10):3134–9.
Zhang Z, Fu D, Xie D, et al. CBL1/9-CIPK23-NRAMP1 axis regulates manganese toxicity. New Phytol. 2023;239(2):660–72.
Adachi H, Nakano T, Miyagawa N, et al. WRKY Transcription Factors Phosphorylated by MAPK regulate a plant Immune NADPH oxidase in Nicotiana Benthamiana. Plant Cell. 2015;27(9):2645–63.
Zhang Q, Chen S, Bao Y, et al. Functional Diversification Analysis of Soybean Malectin/Malectin-Like Domain-containing receptor-like Kinases in immunity by transient expression assays. Front Plant Sci. 2022;13:938876.
Wang X, Liu W, Chen X, et al. Differential gene expression in incompatible interaction between wheat and stripe rust fungus revealed by cDNA-AFLP and comparison to compatible interaction. BMC Plant Biol. 2010;10:9.
Tena G, Boudsocq M, Sheen J. Protein kinase signaling networks in plant innate immunity. Curr Opin Plant Biol. 2011;14(5):519–29.
Coca M, San Segundo B. AtCPK1 calcium-dependent protein kinase mediates pathogen resistance in Arabidopsis. Plant J. 2010;63(3):526–40.
Du L, Ali GS, Simons KA, et al. Ca(2+)/calmodulin regulates salicylic-acid-mediated plant immunity. Nature. 2009;457(7233):1154–8.
Kurusu T, Hamada J, Nokajima H, et al. Regulation of microbe-associated molecular pattern-induced hypersensitive cell death, phytoalexin production, and defense gene expression by calcineurin B-like protein-interacting protein kinases, OsCIPK14/15, in rice cultured cells. Plant Physiol. 2010;153(2):678–92.
Du W, Lin H, Chen S, et al. Phosphorylation of SOS3-like calcium-binding proteins by their interacting SOS2-like protein kinases is a common regulatory mechanism in Arabidopsis. Plant Physiol. 2011;156(4):2235–43.
Hashimoto K, Eckert C, Anschütz U, et al. Phosphorylation of calcineurin B-like (CBL) calcium sensor proteins by their CBL-interacting protein kinases (CIPKs) is required for full activity of CBL-CIPK complexes toward their target proteins. J Biol Chem. 2012;287(11):7956–68.
Lin H, Yang Y, Quan R, et al. Phosphorylation of SOS3-LIKE CALCIUM BINDING PROTEIN8 by SOS2 protein kinase stabilizes their protein complex and regulates salt tolerance in Arabidopsis. Plant Cell. 2009;21(5):1607–19.
Yadav AK, Jha SK, Sanyal SK, et al. Arabidopsis calcineurin B-like proteins differentially regulate phosphorylation activity of CBL-interacting protein kinase 9. Biochem J. 2018;475(16):2621–36.
Gao C. Genome engineering for crop improvement and future agriculture. Cell. 2021;184(6):1621–35.
Li S, Lin D, Zhang Y, et al. Genome-edited powdery mildew resistance in wheat without growth penalties. Nature. 2022;602(7897):455–60.
Wang N, Tang C, Fan X, et al. Inactivation of a wheat protein kinase gene confers broad-spectrum resistance to rust fungi. Cell. 2022;185(16):2961–74e19.
Kim KN, Cheong YH, Gupta R, et al. Interaction specificity of Arabidopsis calcineurin B-like calcium sensors and their target kinases. Plant Physiol. 2000;124(4):1844–53.
Liang X, Bao Y, Zhang M, et al. A Phytophthora Capsici RXLR effector targets and inhibits the central immune kinases to suppress plant immunity. New Phytol. 2021;232(1):264–78.
Velásquez AC, Chakravarthy S, Martin GB. Virus-induced gene silencing (VIGS) in Nicotiana benthamiana and tomato. J Vis Exp. 2009;28.
Zhou Z, Bi G, Zhou JM. Luciferase complementation assay for protein-protein interactions in plants. Curr Protoc Plant Biol. 2018;3(1):42–50.
